  187 Series    187 SERIES

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 3mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

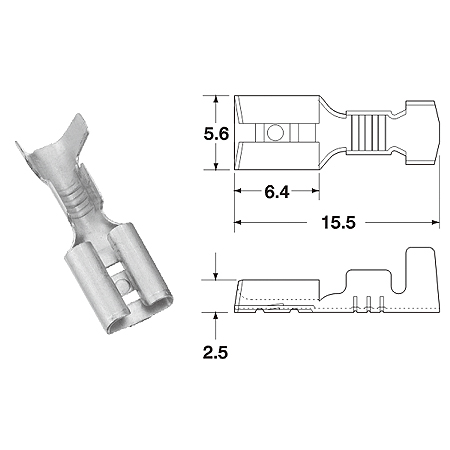

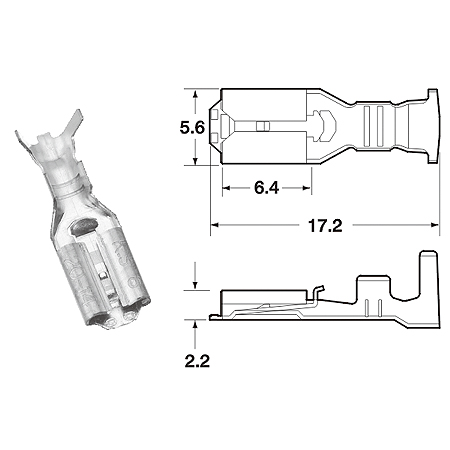

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FM187-01B25 22-16 0.3-1.4 Brass Tin 7500 CDM-93023-M CDT-93023-M FM187-01B95 22-16 0.3-1.4 Brass None 7500 CDM-93023-M CDT-93023-M FM187-01BT5 22-16 0.3-1.4 Brass Pre-Tin 7500 CDM-93023-M CDT-93023-M FM187-02B28 22-16 0.3-1.4 Brass Tin 7500 CDM-94012-M CDT-94012-M FM187-02B98 22-16 0.3-1.4 Brass None 7500 CDM-94012-M CDT-94012-M FM187-02BT8 22-16 0.3-1.4 Brass Pre-Tin 7500 CDM-94012-M CDT-94012-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 FL187-03BT8 20-14 0.5-2.0 Brass Pre-Tin 7500 CDM-95017-L CDT-95017-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 GM187-01BT5 22-16 0.3-1.4 Brass Pre-Tin 5000 CDM-95015-M CDT-95015-M UL/CUL ALL LISTED
